Nibbler Pocket - HeltecV3 Meshtastic Powered Portable Node case with internal Antenna

Say hello to Nibbler Pocket, the tiny HeltecV3 powered “pocket” Meshtastic powered node case with an internal antenna for maximum portability.

Checkout my video about Nibbler and how to assemble one HERE.

PLEASE NOTE: Nibbler does not include the HeltecV3 or Battery, as with Bender these have to be purchased separately.

My popular Bender case was designed to be a desk/windowsill node (although it’s still quite pocketable!) Nibbler Pocket is designed to be a companion to Bender (this is a Mesh network after all!) with the design goals being maximum portability, practicality with all day battery life.

Nibbler Pocket includes an internal PCB antenna for the smallest possible footprint. This antenna is very small and is ideally suited for use in areas with a high density of nodes or if you have a relay node or Bender close by! If you want a Nibbler with a bigger antenna I have that covered with Nibbler Pockets sibling, Nibbler Plus!

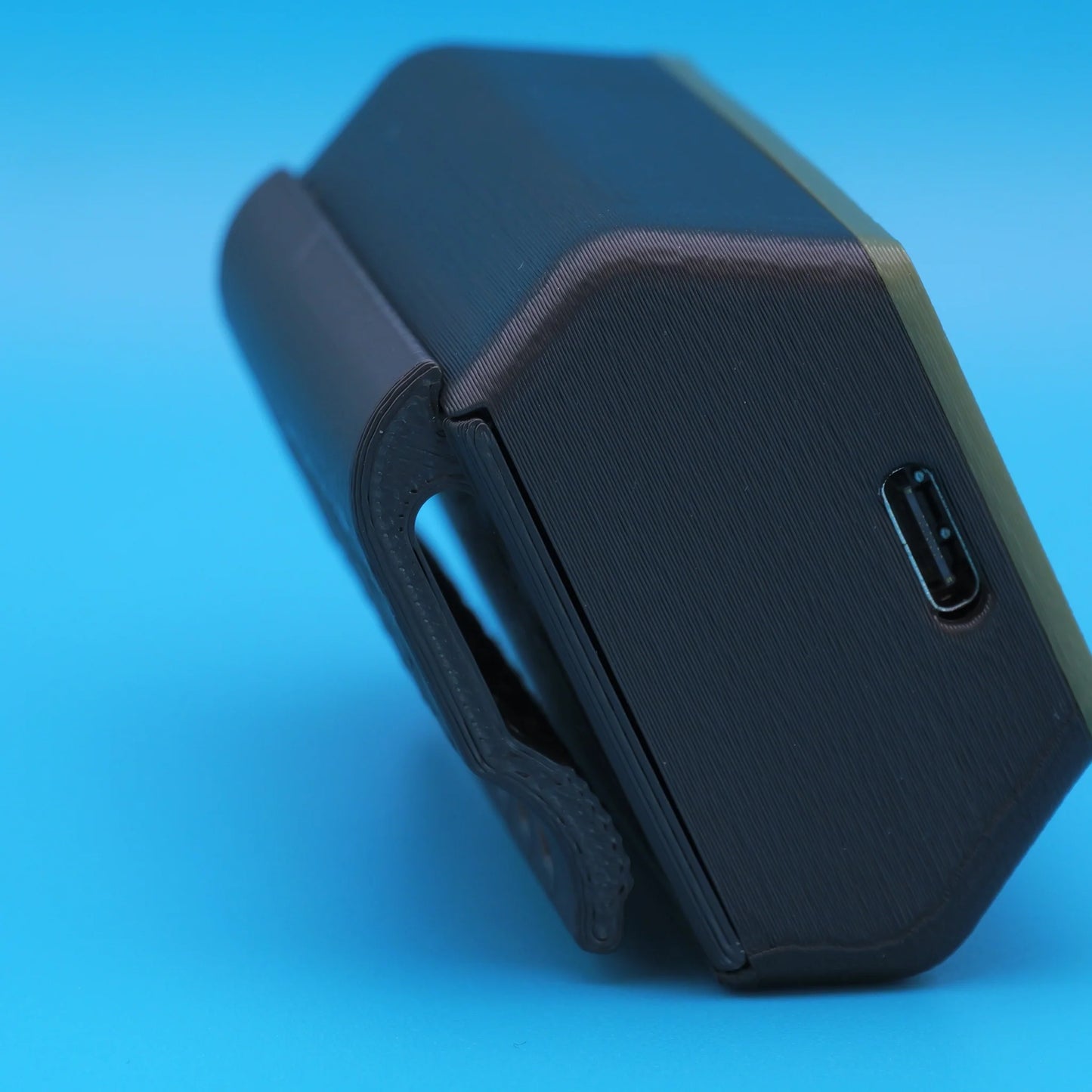

The base Nibbler Pocket configuration includes a flat back for easy pocket-ability and measures just 73x46x26mm. If you want pretend it’s the 80’s again there’s an optional belt clip so you can rock it like a pager too! The clip is super strong and replaces the normal flat back (if you order the clip no flat back is included)

For extra security Nibbler also has a strong lanyard slot which will accept a loop, a simple black lanyard with quick connector is available as an option.

Something this small must have rubbish battery life though right? Nope, Nibbler uses a 2000mah flat LIPO cell that can provide over 20 hours of battery life! Your phone battery will die before Nibbler! Using this battery is only possible due the custom cable we include with each case (we’ve had it manufactured in bulk, no soldering on this one thank god!)

Nibbler has a construction designed to be tough, portable things get dropped after all. The key to this is the “Niblet” on the end of the body which attaches with two included M3 Hex bolts. These bolts screw into captive stainless steel square nuts inside the body and secure the front face and rear battery cover and option clip (Allen key included!). Nibbler will not come apart unless these two hex bolts are removed, accidental disassembly is pretty impossible! I will be publishing a free STEP file so you can design your own Niblets too… N-Type connector anyone?

To summarise the features:

• Supports the HeltecV3 (not included)
• Body measuring just 73x46x26mm
• Support for a EEMB LP103454 2000mah flat LIPO with PCM chip providing 20hr+ battery life (not included, see links below)
• Included custom made battery cable allowing use of batteries with JST PH2.0 connector
• Strong Lanyard loop slot with optional Lanyard available
• Optional Belt Clip
• Access to USB-C connector for charging
• High quality tough PLA+ bioplastic
• Stainless steel Hex bolts and nuts included plus Allen key!

Just like Bender, Nibbler is clean and simple externally but features a precision design with a complex internal structure that has taken countless prototypes to perfect. I love Bender but I love Nibbler more and am sure you will too!

BATTERY LINKS:

UK :  https://www.amazon.co.uk/dp/B08214DJLJ

US : https://www.amazon.com/dp/B08214DJLJ
